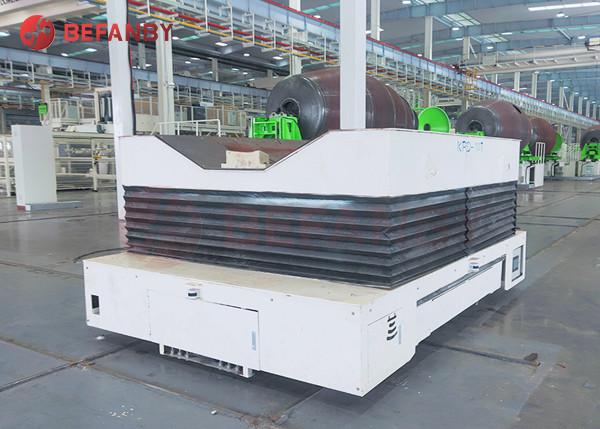

Electric Power Steel Beam Handling Rail Transfer Trolley 200mt Load
1. Product Introduce
flat carts power supply system custom manufacture flat cars
| BEFANBY custom manufacture electric power steel beam handling rail transfer trolley is powered by low voltage electricity from rails, the series of rail transfer trolley is one of the most convenient material handling equipment and it generally can be widely applied in the industry field and so on. Of course,compared other transfer trolley,the main features as it follows,its steel rails are insulated with the ground, and its wheels are insulated with the ground, so don't others.it is the strength that the electric rail transfer trolley used in warehouses, why we design is that its convenient (only rails needed) and its simple operation. flat carts power supply system custom manufacture flat cars |
factory manufacturer flat cars custom manufacture flat carts high speed rail factory manufacturer flat cars custom manufacture flat carts high speed rail
| Please contact us if you's like to learn more details and get the quotation. BEFANBY have over 16 years' experience in the material handling fields. |
factory manufacturer flat cars custom manufacture flat carts high speed railfactory manufacturer flat cars custom manufcture flat carts high speed rai
flat carts power supply system custom manufacture flat car
flat crts power supply system custom manufacture flat cars
2. Befanby Material Handling Equipment Introduce
factory manufacturer flat cars custom manufacture flat carts high speed rail
The rail transfer trolley was used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
Welcome to inquiry us if you'd like to learn more
3. Technique Parameter
KPD series is a electricrail transfer trolley; KPX series is a battery electric rail trolley; KPJ series is a cable reel powered rail transfer trolley; KPT series is a tow cable powered electric rail transfer trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 |
